System Models

As already mentioned in the Core concepts, System Model represent a group of devices providing the same functionalities to users.

In Edgehog a System Model has this information associated with it:

  • Name: a user friendly name used to identify the System Model (e.g. "E-Bike v2")
  • Handle: a machine friendly identifier for the System Model (e.g. "e-bike-v2"). A valid handle must begin with a lowercase letter followed by any number of lower case letters, numbers or dashes (-).
  • Hardware type: the Hardware Type that is used for this system model. Each System Model is associated with exactly one Hardware Type.
  • Part numbers: the Part Numbers for this System Model. Each System Model can have one or more Part Numbers associated with it, and Devices will be associated with a System Model based on the Part Number they declare to implement.
  • Picture: each System Model can have a picture associated with it, so that Devices using that System Model can be identified at a glance.

The following sections will illustrate all the pages that can be used to list, create and edit System Models.

System Model List

System Model List Screenshot

In the system model list you can see all the System Models that are available. All information relative to each System Model (minus the picture) is present in the table, and clicking on the name brings to the System Model page.

Clicking on the "Create System Model" button in the top right brings to Create System Model page.

System Model

System Model Page Screenshot

The System Model page shows the information about a specific System Model and allows updating all of them except the Hardware Type.

Editing any field and then pressing the "Update" button saves the new values for the System Model. The "Add Part Number" button allows adding additional Part Numbers to a System Model, and the thrash icon on the right of each of them allows deleting them.

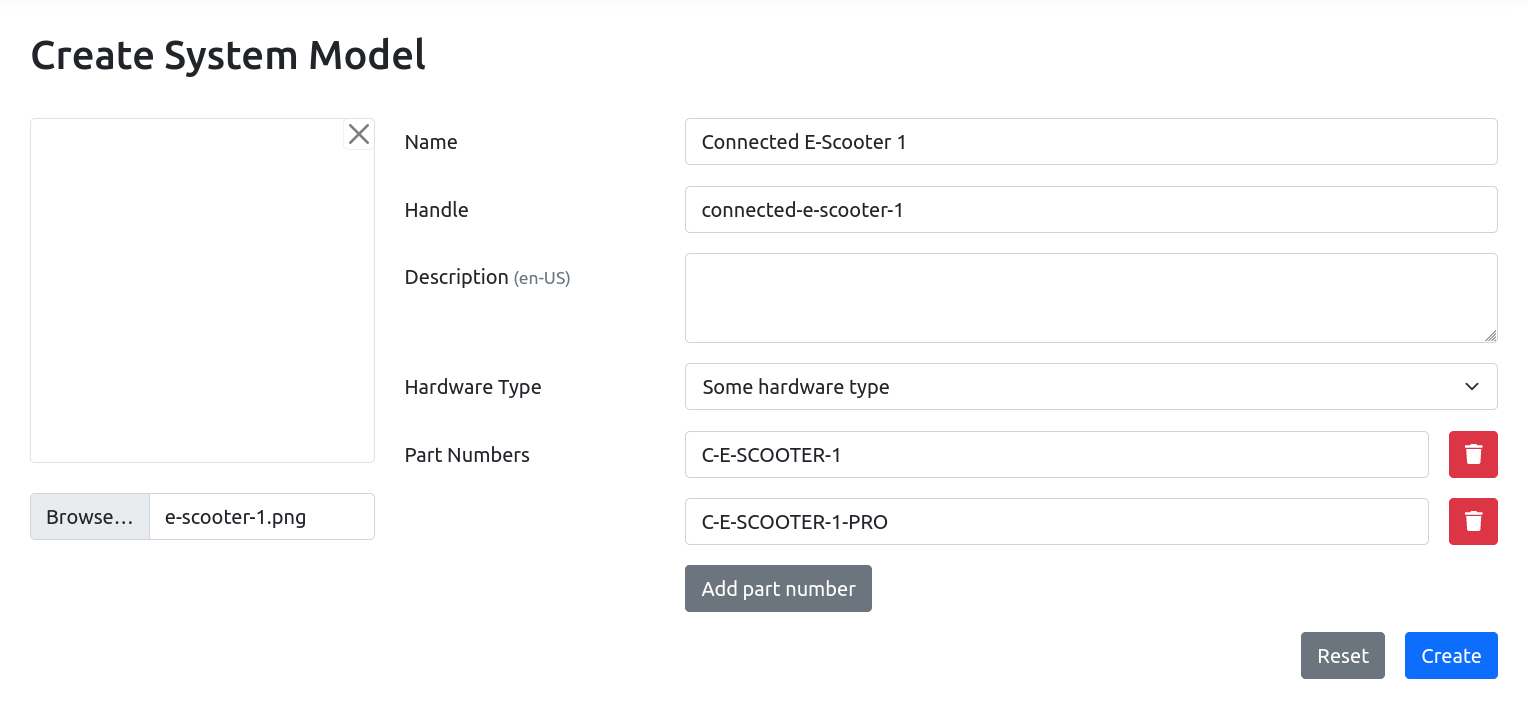

Create System Model

Create System Model Screenshot

The Create System Model page allows creating a new System Model.

The System Model information can be provided using the form, and pressing the "Update" button saves the System Model. The Hardware Type must be chosen from a list of available Hardware Types using the dropdown menu. The "Add Part Number" button allows adding additional Part Numbers for the System Model.
